Kafka Connect Deep Dive: Source & Sink Connectors

Operationalizing Enterprise Data Integration at Scale

1. Kafka Connect Overview

In enterprise data systems, moving data is rarely about just the transport—it's about reliability, scalability, and observability. Kafka Connect is the industry-standard framework for bridging the gap between Apache Kafka and external datastores. Instead of writing custom, brittle "plumbing" code, Connect provides a declarative, distributed environment that handles the heavy lifting: offset management, task rebalancing, and fault tolerance at scale.

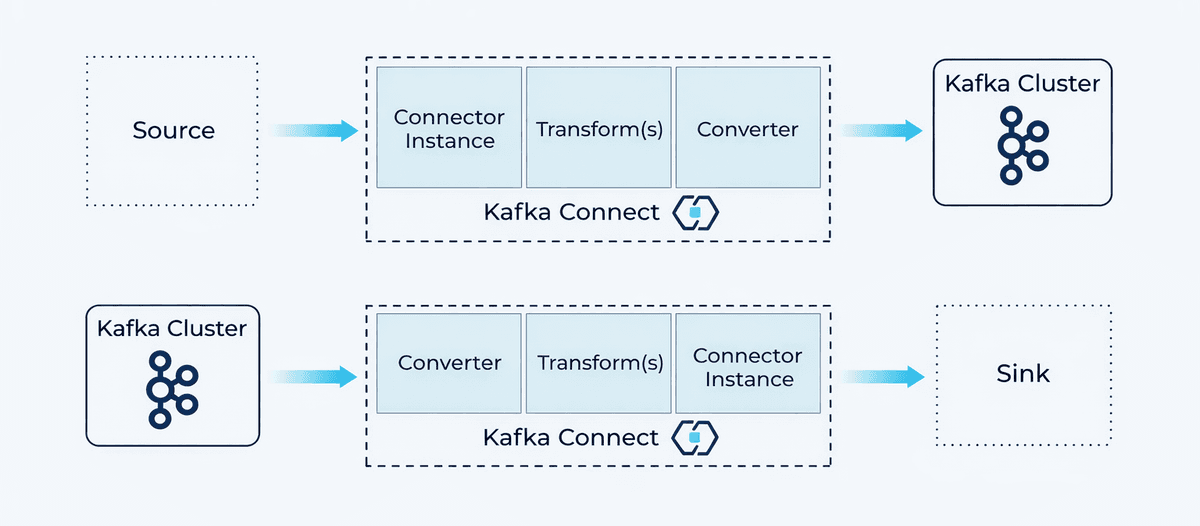

Kafka Connect Internal Architecture

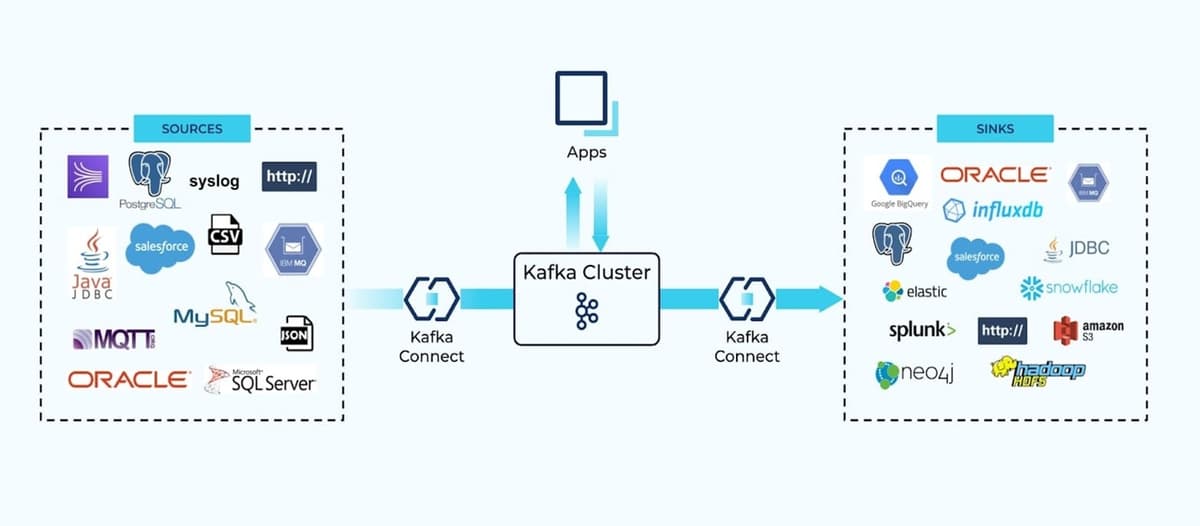

Source & Sink Data Flow

2. Internal Architecture & Elasticity

Kafka Connect is more than a simple data pipeline—it is a self-healing, distributed runtime. By leveraging the Kafka consumer protocol, it coordinates work distribution across a cluster of "Workers," ensuring that addition or removal of a node triggers an automatic redistribution of tasks.

The Holy Trinity of State

In Distributed Mode, Kafka Connect stores its state in three compacted internal Kafka topics. These topics are the source of truth for the cluster and must be configured with a high replication factor (3+).

Serialization & In-Flight Processing

To transform raw bytes into meaningful events, Kafka Connect uses a pluggable processing layer. Converters (Avro, Protobuf, JSON) handle the serialization, while Single Message Transformations (SMT) enable lightweight, stateless processing—like PII masking or field renaming—directly at the edge.

3. Source Connectors Deep Dive

Source integration patterns fall into two categories: Polling (query-based) and Log-based (CDC). While polling is easy to implement, it often misses deletes and puts pressure on the source DB. CDC is the gold standard for high-fidelity data capture.

A) MongoDB Source (Change Streams)

Captures change events directly from MongoDB's oplog/change-streams.

// mongodb-source.json
{
  "name": "mongo-source-orders",
  "config": {
    "connector.class": "com.mongodb.kafka.connect.MongoSourceConnector",
    "connection.uri": "mongodb://mongo:27017",
    "database": "sales",
    "collection": "orders",
    "topic.prefix": "mongo",
    "pipeline": "[{'$match': {'operationType': {'$in': ['insert', 'update']}}}]",
    "publish.full.document.only": "true",
    "tasks.max": "3"
  }
}

B) JDBC Source (Query-based)

Uses SQL queries to poll for changes. Best for legacy systems where log access is restricted.

// jdbc-source-users.json
{
  "name": "jdbc-source-users",
  "config": {
    "connector.class": "io.confluent.connect.jdbc.JdbcSourceConnector",
    "connection.url": "jdbc:postgresql://db:5432/userdb",
    "mode": "timestamp+incrementing",
    "incrementing.column.name": "id",
    "timestamp.column.name": "updated_at",
    "topic.prefix": "users.events",
    "poll.interval.ms": "5000"
  }
}

4. Sink Connectors Deep Dive

Sink ingestion requires careful handling of delivery guarantees. While "at-least-once" is the default, writing to downstream systems can lead to duplicates unless idempotency is baked into the write logic (e.g., using primary keys for upserts).

A) MongoDB Sink (Upsert Semantic)

// mongodb-sink.json
{
  "name": "mongo-sink-summary",
  "config": {
    "connector.class": "com.mongodb.kafka.connect.MongoSinkConnector",
    "connection.uri": "mongodb://mongo:27017",
    "database": "analytics",
    "collection": "order_summary",
    "topics": "orders.events",
    "writemodel.strategy": "com.mongodb.kafka.connect.sink.writemodel.strategy.ReplaceOneBusinessKeyStrategy",
    "document.id.strategy": "com.mongodb.kafka.connect.sink.processor.id.strategy.PartialValueStrategy",
    "document.id.strategy.partial.value.projection.list": "order_id",
    "errors.tolerance": "all",
    "errors.deadletterqueue.topic.name": "orders.events.dlq"
  }
}

B) Redis Sink (Hash Ingestion)

// redis-sink-sessions.json
{
  "name": "redis-sink-sessions",
  "config": {
    "connector.class": "com.github.jcustenborder.kafka.connect.redis.RedisSinkConnector",
    "redis.hosts": "redis:6379",
    "topics": "session.events",
    "redis.command": "HMSET",
    "redis.key": "session:${value.session_id}",
    "ttl.seconds": "3600"
  }
}

5. Multi-Sink & Fan-Out Architecture

A single Kafka topic, such as orders.events, can be consumed by multiple connectors simultaneously. Each sink operates independently, maintaining its own consumer group and offsets.

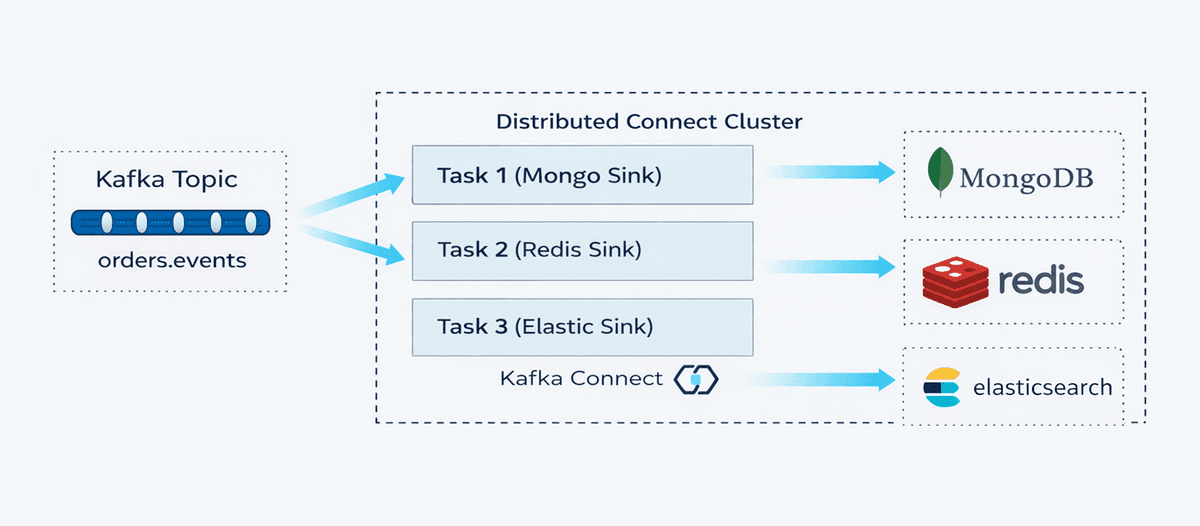

Kafka Connect Fan-out Pattern

6. Production Considerations

errors.tolerance = all
errors.deadletterqueue.topic.name = connect-dlq
errors.deadletterqueue.context.headers.enable = true
errors.retry.delay.max.ms = 60000
errors.retry.timeout = 300000

7. When NOT to Use Kafka Connect

While Kafka Connect is powerful, it is not a panacea.

8. Conclusion

Kafka Connect is the architectural backbone for the modern, event-driven data platform. By offloading the operational complexity of offset management and distributed scaling to the framework, platform engineers can focus on the Schema and Semantics of data rather than the plumbing of its delivery. Correct configuration of Distributed Mode and robust Monitoring via JMX are the final mile hurdles to a production-grade deployment.
